| HOCM with SAM
|
|
|
| Courtesy of: AMC Echolab, AMC, The Netherlands
|
|
|

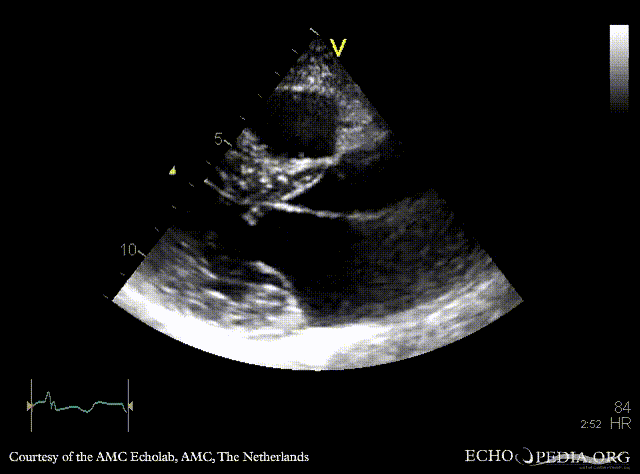

| PLAX: concentric hypertrophy of left ventricle, SAM of AMVL
|

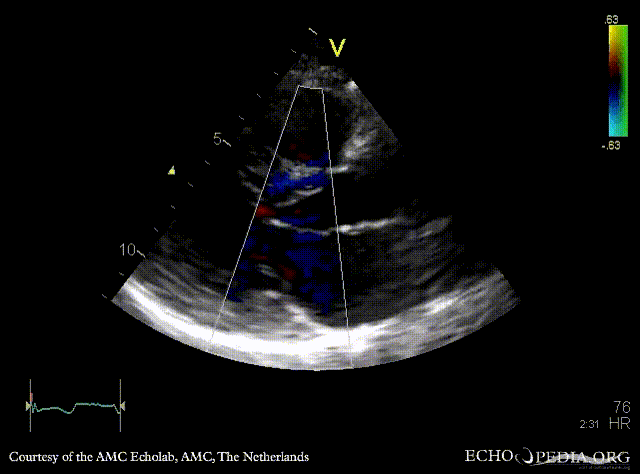

PLAX with Color Doppler: high velocity turbulent flow in LVOT
|
 enlarge
 download file to use in your powerpoint presentation
|
enlarge
download file to use in your powerpoint presentation
|
|
|
|
|

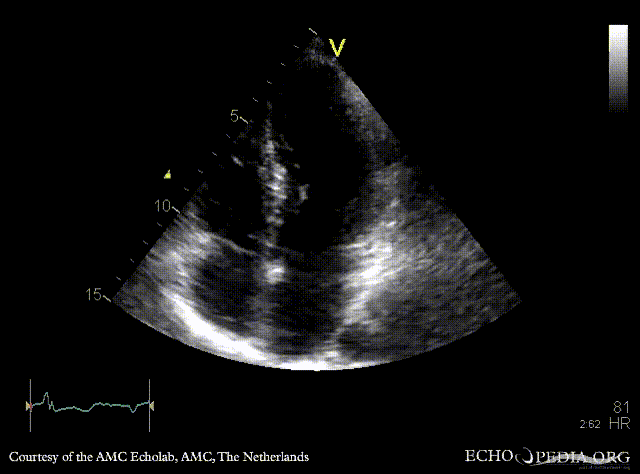

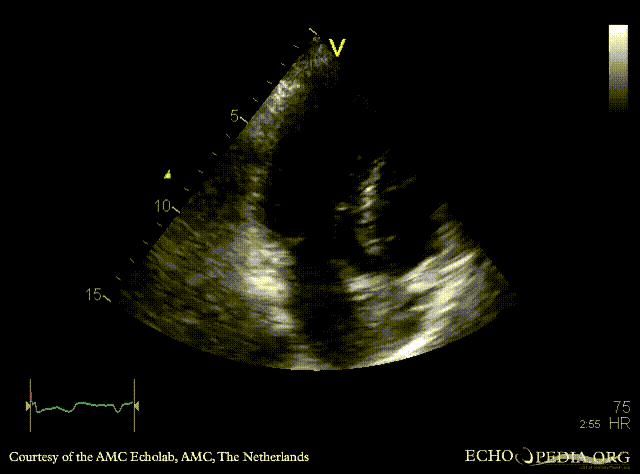

| A4CH: concentric hypertrophy of left ventricle, SAM of AMVL
|
A3CH
|
enlarge
download file to use in your powerpoint presentation
|
enlarge
download file to use in your powerpoint presentation
|
|
|
|
|

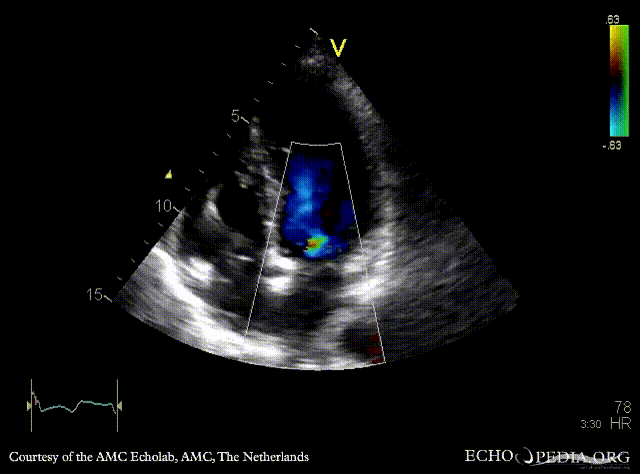

| A3CH with Color Doppler: high velocity turbulent flow in LVOT
|

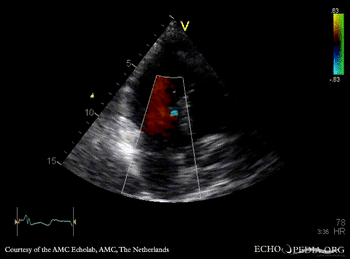

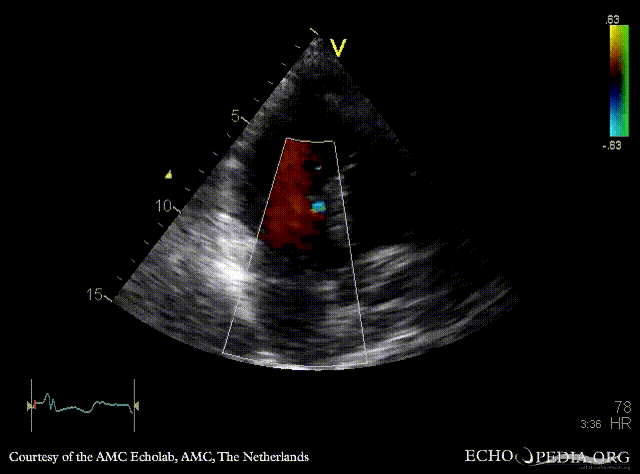

A4CH with Color Doppler: high velocity turbulent flow in LVOT and in the middle of left ventricle
|
enlarge
download file to use in your powerpoint presentation
|
enlarge
download file to use in your powerpoint presentation
|
|
|
|
|
|

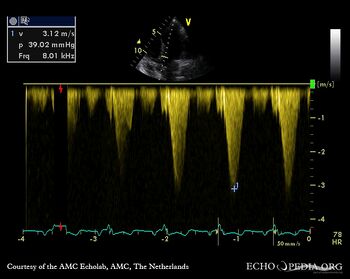

| Continuous-wave doppler signal: dynamic gradient in LVOT
|

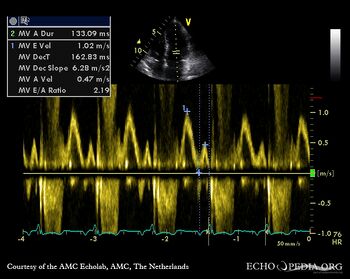

Pulsed-wave doppler signal of transmitral flow
|
|
|
|
|
|
|
|
|

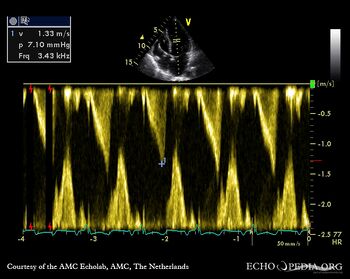

| Continuous-wave doppler signal: dynamic gradient in the middle of left ventricle
|
|
|
|
|
